Quick Answer
The ideal FPV camera depends on your drone size, flying style, and video system (analog vs. digital). Key factors include sensor size, TVL resolution, aspect ratio, and low-light capability. Micro whoops require sub-1g nano cameras, while 5-inch freestyle quads can carry full-size cameras for superior image quality.
What Is an FPV Camera?

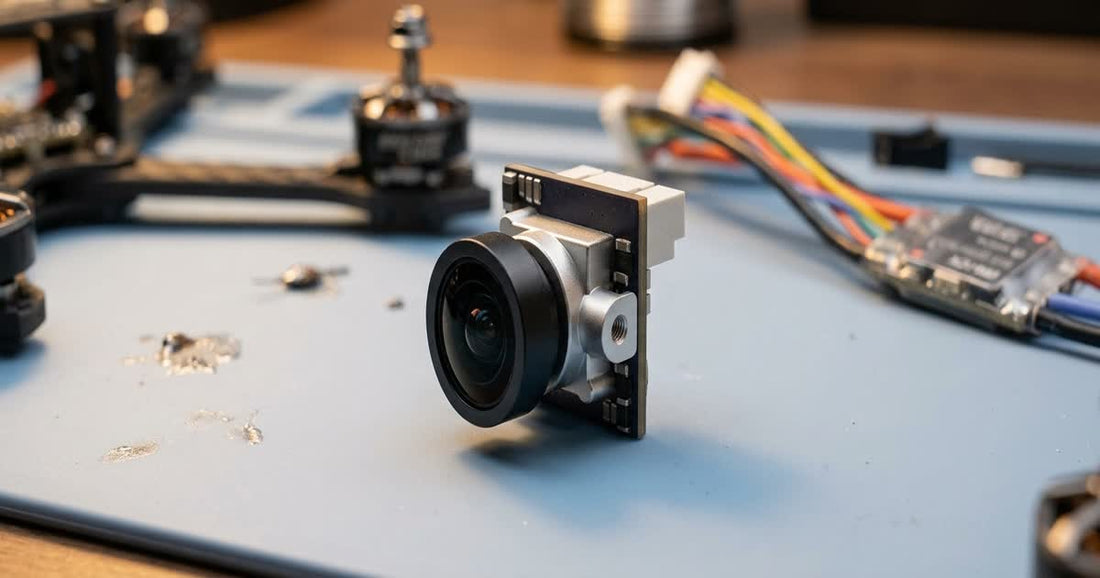

An FPV (First Person View) camera is the small board camera mounted on the front of your drone that feeds live video directly to your goggles. Unlike an HD action camera used to record footage, the FPV camera is what you actually use to fly. Its latency, image clarity, and light handling directly impact your flight performance.
Camera Size Categories
FPV cameras come in various sizes to fit different frame classes. Getting the size right is crucial so the camera fits securely inside your frame's canopy or mounting bracket.
| Size | Typical Use | Weight Range |
|---|---|---|
| Nano / Micro (19x19mm or smaller) | 65-85mm whoops, toothpicks | Under 1.5g |
| Mini (20x20mm) | 3-inch freestyle, cinewhoops | 2-4g |
| Standard / Full-Size (28x28mm) | 5-inch freestyle, racing, long range | 5-8g |
For micro builds, the Caddx Ant Lite weighs just over 1g and delivers a sharp 4:3 image at 1200TVL—perfect for 75mm whoops. For 5-inch quads where weight is less critical, larger sensors provide noticeably cleaner video.
Aspect Ratio: 4:3 vs 16:9
Most cameras default to 4:3 or 16:9. The 4:3 format is taller, offering better altitude awareness for racing and proximity flying. The 16:9 widescreen format feels more cinematic and is generally preferred by freestyle pilots.
[Image comparing 4:3 and 16:9 aspect ratios in FPV view]
Many cameras are switchable via Betaflight or OSD menus. The Caddx Ant 1200TVL Nano supports both 4:3 and 16:9, letting you test both formats to see what suits your flying style best.
Low-Light Performance
If you fly indoors, at dusk, or in typical overcast UK weather, low-light performance trumps resolution. Larger image sensors capture more light, reducing grain. "Starlight" cameras like the Foxeer Mini Cat 4 are purpose-built for low light, handling dim environments effortlessly at a compact 20x20mm form factor.
TVL and Sensor Quality
TVL (TV Lines) measures analog sensor resolution. Modern FPV cameras range from 800TVL to 1500TVL. Going beyond 1000TVL is often unnoticeable in analog goggles, so avoid overspending on high TVL numbers alone. For a massive clarity boost, digital systems like the DJI O4 Pro Air Unit bypass analog entirely for a direct HD feed.
Analog vs Digital Cameras
Analog cameras send standard composite signals to your VTX. They are affordable, ultra-lightweight, and universally compatible. Digital systems (like DJI O4, Walksnail, and HDZero) combine the camera and VTX into one unit. The video is stunning, but they cost and weigh more.
Not sure which to pick? Read our analog vs digital FPV comparison for a detailed breakdown. Remember: your camera and video system must match.
Matching Your Camera to Your Goggles
Your goggles dictate the maximum video quality you can see. A premium camera won't look better on budget LCD screens. Upgrade your camera only if your goggles can display the extra detail. Check our FPV goggles guide to match your gear to your budget.
Key Features to Compare
| Feature | What to Look For |
|---|---|
| Sensor size | Larger sensors (1/3" or 1/2") perform better in low light |
| WDR (Wide Dynamic Range) | Essential for flying from dark shadows into bright sunlight |
| DWDR / D-WDR | Digital WDR (software-based); less effective than true hardware WDR |
| OSD support | Most cameras support Betaflight OSD overlays via the flight controller |
| DC input range | Typically 5V; always verify your flight controller's BEC output |
Browse our full FPV cameras collection to find the right fit, or check out our ready-to-fly kits if you want a pre-built drone right out of the box.
