Ultra 1600mW VTX: 1.6W Long-Range Video Transmitter

Still pushing your analog video feed through a wheezing 600mW unit and wondering why your FPV goggles show pure static behind a single hedge? The Ultra 1600mW VTX delivers 1.6W of RF output power across 4.9GHz to 5.8GHz to punch clean through dense obstacles and bando concrete. Backed by Unmanned Tech’s 10 years of experience in the manufacturing and delivery of commercial FPV systems, this long-range video transmitter runs standard IRC Tramp telemetry, integrates seamlessly with your flight controller UART and Betaflight OSD, and accepts direct 7V-36V input from 2S–8S LiPo battery packs without cooking your delicate electronics.

Key Highlights

• 1.6W Long-Range Output: Blast through signal interference with up to 1600mW of RF power across 64 channels.
• Two-Layer Thermal Board: Split BEC and RF mainboard layout shields your video feed from electrical noise while onboard thermal protection prevents instant meltdowns.
• Betaflight & OSD Integration: Full IRC Tramp protocol support allows instant channel, band, and power switching straight from your radio transmitter or OSD.

Why You Want It

Because failsafing video behind a line of damp British trees is a tragic way to lose an expensive carbon fibre frame. The Ultra 1.6W VTX gives your long-range cruiser the penetration it needs without forcing you to endure fiddly button presses in the mud. The integrated microphone streams live motor audio directly to your goggles so you can hear prop wash and throttle response in real time, while the standard 30.5x30.5mm mounting pattern drops cleanly into your main flight stack.

Specifications

• RF Output Power: 25mW / 200mW / 400mW / 800mW / 1600mW / Pit Mode
• Input Voltage: 7V – 36V (2S–8S LiPo direct input)
• Mounting Pattern: 30.5mm × 30.5mm
• Control Protocol: IRC Tramp (Full Betaflight OSD control)
• Frequency Coverage: 4.9GHz – 5.8GHz (64 channels across 3 regional tables)
• Audio: Built-in microphone for real-time motor telemetry
• Thermal Protection: Two-layer split board with thermal control cutoff

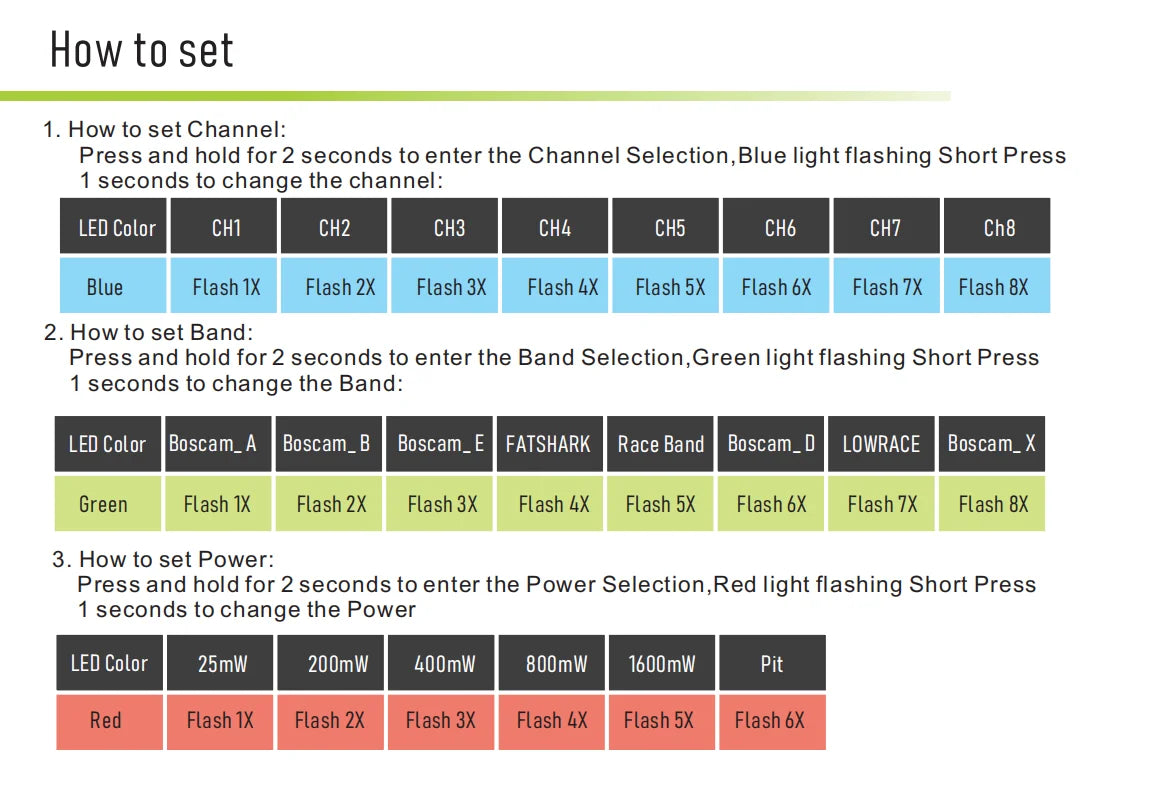

• Interface: 1x physical button, 3x status indicator LEDs
• Weight: Data unavailable (our scales work fine, but the manufacturer decided weight is a state of mind)

Betaflight CLI Configuration

Paste the following into your Betaflight CLI tab to configure your VTX Table, UART serial port, and AUX switch power controls:
For the serial and Aux, change this to the appropriate one you have it connected to.

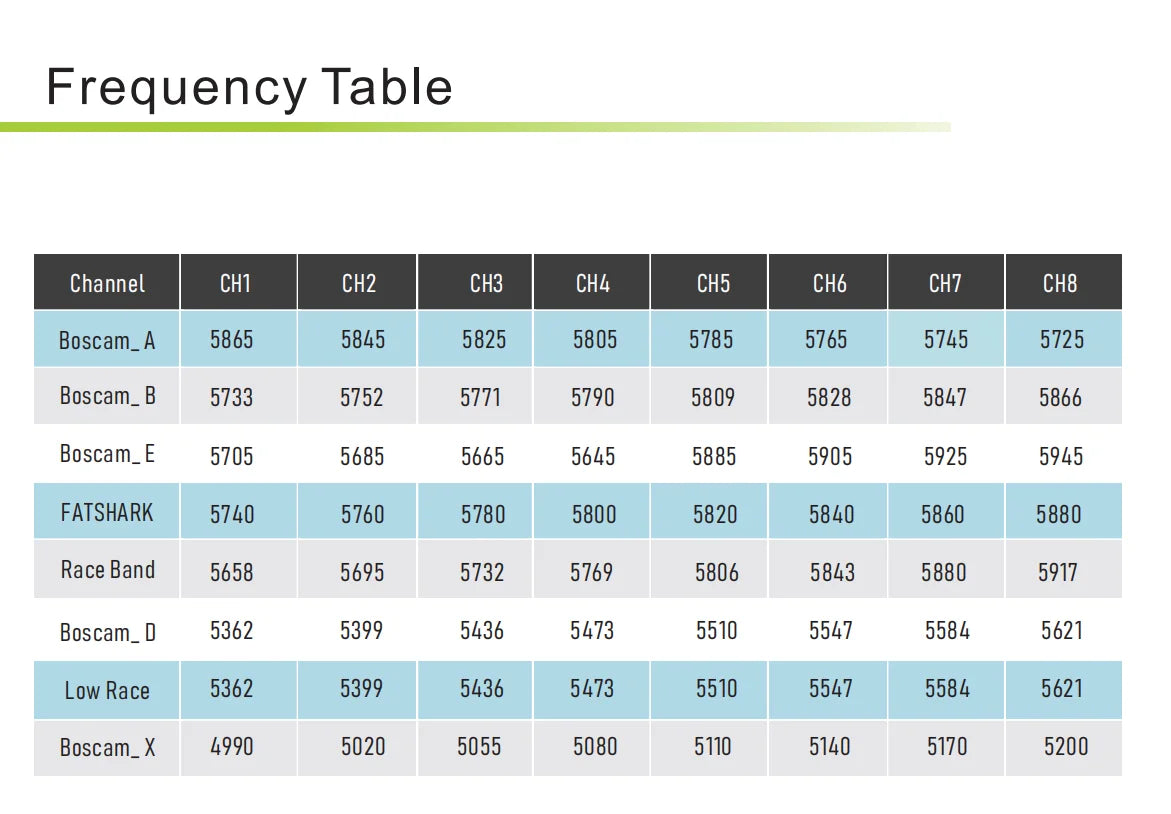

# vtxtable
vtxtable bands 7
vtxtable channels 8
vtxtable band 1 BAND_A A CUSTOM 5865 5845 5825 5805 5785 5765 5745 5725
vtxtable band 2 BAND_B B CUSTOM 5733 5752 5771 5790 5809 5828 5847 5866
vtxtable band 3 BAND_E E CUSTOM 5705 5685 5665 5645 5885 5905 5925 5945
vtxtable band 4 BAND_F F CUSTOM 5740 5760 5780 5800 5820 5840 5860 5880
vtxtable band 5 BAND_R R CUSTOM 5658 5695 5732 5769 5806 5843 5880 5917
vtxtable band 7 LOW_RACE L CUSTOM 5362 5399 5436 5473 5510 5547 5584 5621
vtxtable band 8 BOSCAM_X X CUSTOM 4990 5020 5055 5080 5110 5140 5170 5200
vtxtable powerlevels 4
vtxtable powervalues 25 400 800 1600
vtxtable powerlabels 25 400 800 1W6

# serial (VTX on UART2)
serial 1 8192 115200 57600 0 115200

# vtx aux control (Aux2)
vtx 0 2 0 0 1 900 1100
vtx 1 2 0 0 2 1400 1600
vtx 2 2 0 0 4 1900 2100

save

FAQ

How do I set up the Ultra 1600mW VTX without burning it out on the bench?

Always connect a quality 5.8GHz antenna before applying power. While the Ultra 1600mW features onboard thermal protection, radiating 1.6W of RF power produces serious heat without flight airflow; keep the VTX in Pit Mode or 25mW in Betaflight while bench-testing to avoid triggering thermal throttling or letting out the magic smoke.

What’s in the Box*

• 1× Ultra 1.6W High-Power 5.8GHz VTX
• 1× Plug-and-play wiring harness
• 1× Linear dipole antenna

Disclaimer

Blasting 1600mW on 5.8GHz in the UK will raise eyebrows at Ofcom unless you hold the appropriate amateur radio license and follow local RF power regulations. Never power this board without an antenna securely mounted unless you enjoy the scent of vaporised silicon.

Still Here?

Stop flying on a fuzzy video link and blaming your PID tune. Drop the Ultra 1600mW into your 30x30 stack, paste the CLI config, and fly long-range with complete video confidence.
